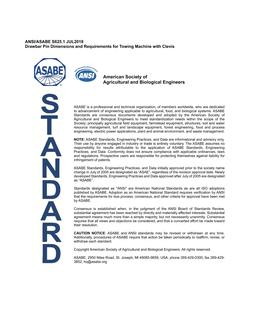

ASAE/ASABE S625.1

Original price was: $75.00.Current price is: $45.00.

Drawbar Pin Dimensions and Requirements for Towing Machine with Clevis

Published by Publication Date Number of Pages
ASAE/ASABE 07/01/2018 7

ASAE/ASABE S625.1 – Drawbar Pin Dimensions and Requirements for Towing Machine with Clevis

This standard establishes dimensional and minimum strength requirements for agricultural drawbar hitch pins used in single point attaching of a towed machine to towing machines or leading machines. Application of this standard assumes a clevis on the towing machine conforming to ASABE AD 6489-3 and a ring on the towed machine conforming to ASABE/ISO 21244:2008. Additionally, this standard defines loading conditions for drawbar pin retention systems.

When the towing machine does not conform to ANSI/ASABE AD 6489-3:2004 or the towed machine does not conform to ASABE/ISO 21244:2008, fit and performance of pins designed per this standard may be affected. However, usage of applicable specifications derived from this standard is encouraged for such cases.

Note: ANSI/ASABE AD6489-3:2004 and ASABE/ISO 21244:2008 provide essential information related to tractor drawbars and associated implement hitch rings.

Product Details

Published:
07/01/2018
ANSI:
ANSI Approved
Number of Pages:
7
File Size:
1 file , 1.4 MB
Redline File Size:
2 files , 5.9 MB
